our award-winning
products
Jango®
500/1000 Watt
The Jango® is the bigger sibling of our Needle®, but is water-cooled instead of air-cooled. The robust lifting points, forklift compatibility and braked wheels provide various transport options.
Moreover, the Jango® is equipped with extra space for storage of accessories, personal protective equipment, etc.
The top hat laser profile is suitable for larger industrial jobs.

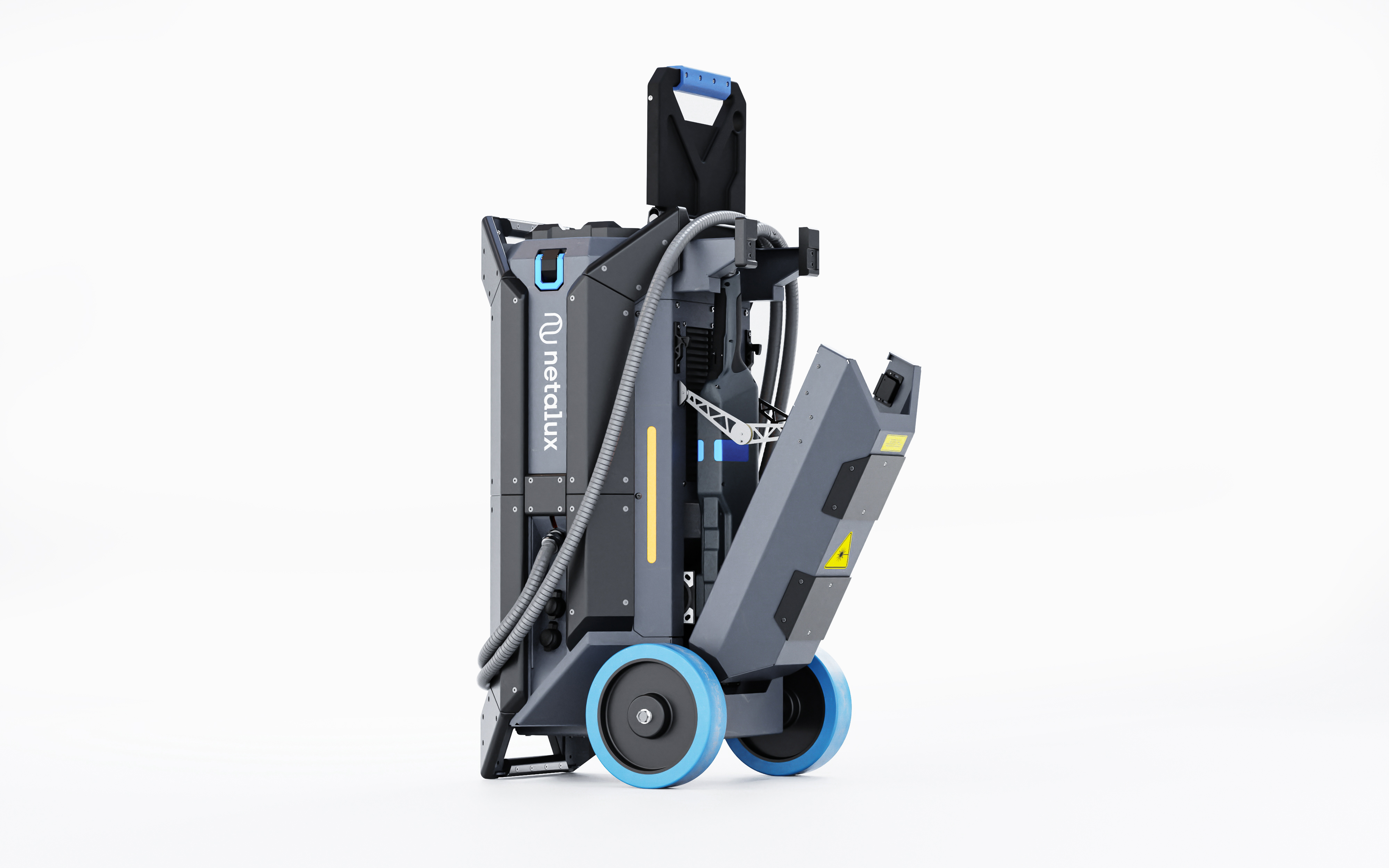

Needle®
200/300 Watt
The Needle® 200 and 300 Watt received their own design. Still very compact and air-cooled, but this model with 5 meters of fiber does not need a transport box.
In addition, unlike the Needle® 100 / 150 Watt, it has a pulse energy of 2mJ. This makes the Needle® 200 / 300 more powerful.
The Needle® 200 / 300 Watt uses a Gaussian laser profile. This makes the laser ideal for small areas.
Needle®
100/150 Watt
This compact, air-cooled laser cleaning machine is small enough to use in hard-to-reach locations. The limited weight makes it flexible and easy to handle.
Even when the workplace is located in the middle of other installations or atmospheric contamination is a risk, this Needle® is an ideal solution.
The Needle® 100 / 150 Watt uses a Gaussian laser profile ideal for small areas.
stationary
All our Needle® and Jango® models are available in a stationary version. Integrated into a production line, fully or partially automated, allows you to clean with extraordinary precision. The software makes it possible to read in CAD drawings or other data of the surface to be cleaned.
We provide a robust system that keeps the optics and electronics safe, even during prolonged and intense use.
coming soon
At Netalux we never stop developing. We continue to innovate and optimize our products. We look at the possibilities in the present and in the future.
Subscribe to our newsletter and stay up-to-date with the launch of new products.
Subscribe to our newsletter.
gaussian pulse
top hat pulse
mobile vs stationary
When a certain cleaning must be carried out very often or even 24/7, we recommend a stationary solution. This laser cleaning device is very easy to integrate into existing processes, which means that implementation costs are kept to an absolute minimum. The simple interface with MODBUS protocols allows integrators to select the program, clean the part and repeat the cycle indefinitely.
unique features for every laser
Needle® & Jango® are developed in such a way that the operator always has a familiar feeling and only needs to get to know the hardware once.
We know better than anyone that the transport and durability of our machines is also important. They are always hoistable and equipped with the necessary transport options. You can also rest assured that the machines work in the most challenging environments.
a unique, rotable laser head (115° freedom)
integrated LED headlight
integrated controls
arm / disarm button for extra safety and comfort
unique feature of 3 (Jango ®) or 5 (Needle ®) integrated lenses
fully equipped to be lifted
equipped with industrial voltage protection
attachment point for accessories
compare our different laser cleaning machines
Needle 100 / 150 Watt
Needle 200 / 300 Watt
Jango 500 / 1000 Watt
Weight (unit)
≈ 20 kg
≈ 40 kg
≈ 850 kg
Weight (handset)
≈ 2.3 kg
≈ 3 kg
≈ 4 kg
Dimensions l x w x h
333 x 244 x 498 mm
812 x 430 x 431 mm
2117 x 840 x 1470 mm
Fiber length
4.5 m
mobile 5.7 m / stationary 7.5 m
45 m
Laser type
Pulsed fiber laser
Pulsed fiber laser
Pulsed fiber laser
Laser class
Class IV
Class IV
Class IV
Wave length
1064 nm
1064 nm
1064 nm
Pulse type
Gaussian
Gaussian
Top Hat
Pulse length
150 ns
20 ns - 500 ns
100 ns
Pulse frequency
10 - 500 kHz
2 - 4000 kHz
2 - 50 kHz
Maximum pulse energy
1 mJ
2 mJ
100 mJ
Average electric power
450 W / 600 W
950 W / 1,150 W
4.5 kW / 7.5 kW
Electric facility
1P + PE | 110-240V | 50-60Hz | 8A
1P + PE | 110-240V | 50-60Hz | 8A
3P + N + PE | 380-440V | 50-60Hz | 32A
Cooling
Air
Air
Water
IP-value
IP 54
IP 54
IP 54
Operational temperature (°C)
0-35°C
0-35°C
4-35°C
